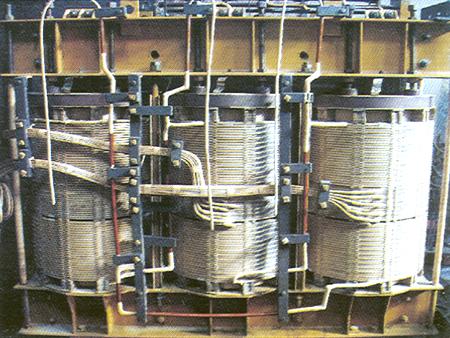

Distribution Transformer Assembly

Three Phase Transformer With OLTC Minimum Order Quantity : 1 Material : Copper Wound, CRGO Silicon Steel Core Coil Material : Other , Highgrade ETP Copper Usage : Industrial Power Distribution Product Type : Other, Power Transformer with OLTC Phase : Three Phase Low Voltage : 415 V / 433 V / 690 V Weight : As per design (varies with capacity) Coil Number : Other, Multiple Winding Voltage Booster Type : Other, On Load Tap Changer (OLTC) Cooling Type : ONAN / ONAF (Oil Natural Air Natural / Oil Natural Air Forced) Output : Custom output as per rating Operating Temperature : 25°C to +50°C High Voltage : 11 kV, 22 kV, 33 kV Frequency (MHz) : 50 Hz Capacity : 1000 kVA to 10000 kVA Power Scope : Upto 10 MVA and above Coil Structure : Toroidal Rated Voltage : Up to 33 kV Dimension (L*W*H) : Depends on rating; custom engineered Load Loss : As per IS standards (at full load)

Air Cooled Three Phase Hermetically Sealed Transformer Price : 50000 INR/Piece Material : Copper and Steel Coil Material : Other , Copper Usage : Power Distribution Product Type : Air Cooled Three Phase Hermetically Sealed Transformer, Other Phase : Three Phase Low Voltage : 433 V Weight : 1200 kg Coil Number : Other, 3 Voltage Booster Type : Hermetically Sealed, Other Cooling Type : Air Cooled Output : Electric Power Operating Temperature : 0°C to 50°C High Voltage : 11 kV Frequency (MHz) : 50 Hz Capacity : 500 kVA Power Scope : Industrial Applications Coil Structure : Other, Core Type Rated Voltage : 11 kV/433 V Dimension (L*W*H) : 1200x800x1000 mm Load Loss : 2%

Single Phase Corrugated Type Transformer Material : Steel Tank Copper Coil Coil Material : Other , Copper Usage : Power Distribution Product Type : Single Phase Corrugated Type Transformer, Other Phase : Single Phase Low Voltage : 0.433 kV Weight : Approx 800 Kg Coil Number : Single Coil, Other Voltage Booster Type : Corrugated Type, Other Cooling Type : ONAN (Oil Natural Air Natural) Output : 0.433/11 kV Operating Temperature : Up to 55°C High Voltage : 11 kV Frequency (MHz) : 50 Hz Capacity : 315 kVA Power Scope : 315 kVA Coil Structure : Other, Corrugated Type Rated Voltage : 11/0.433 kV Dimension (L*W*H) : 1600mm x 1200mm x 1800mm Load Loss : 1.2 kW

100KVA Three Phase Step Up Generator Transformer Material : CRGO Core and Copper Winding Coil Material : Other , Copper Usage : Industrial and Generator Applications Product Type : Transformer, Other Phase : Three Phase Low Voltage : 433V Weight : 1200 kg Coil Number : Three, Other Voltage Booster Type : Other, Automatic Cooling Type : Oil Cooled Output : Stable Voltage Output Operating Temperature : Up to 50°C High Voltage : 11000V Frequency (MHz) : 50Hz Capacity : 100KVA Power Scope : StepUp Transformer Coil Structure : Other, Layer Wound Coils Rated Voltage : 100KVA Dimension (L*W*H) : 1500x1000x1200 mm Load Loss : 285W
